Securing the cloud: Expert tips for analyzing AWS CloudTrail logs

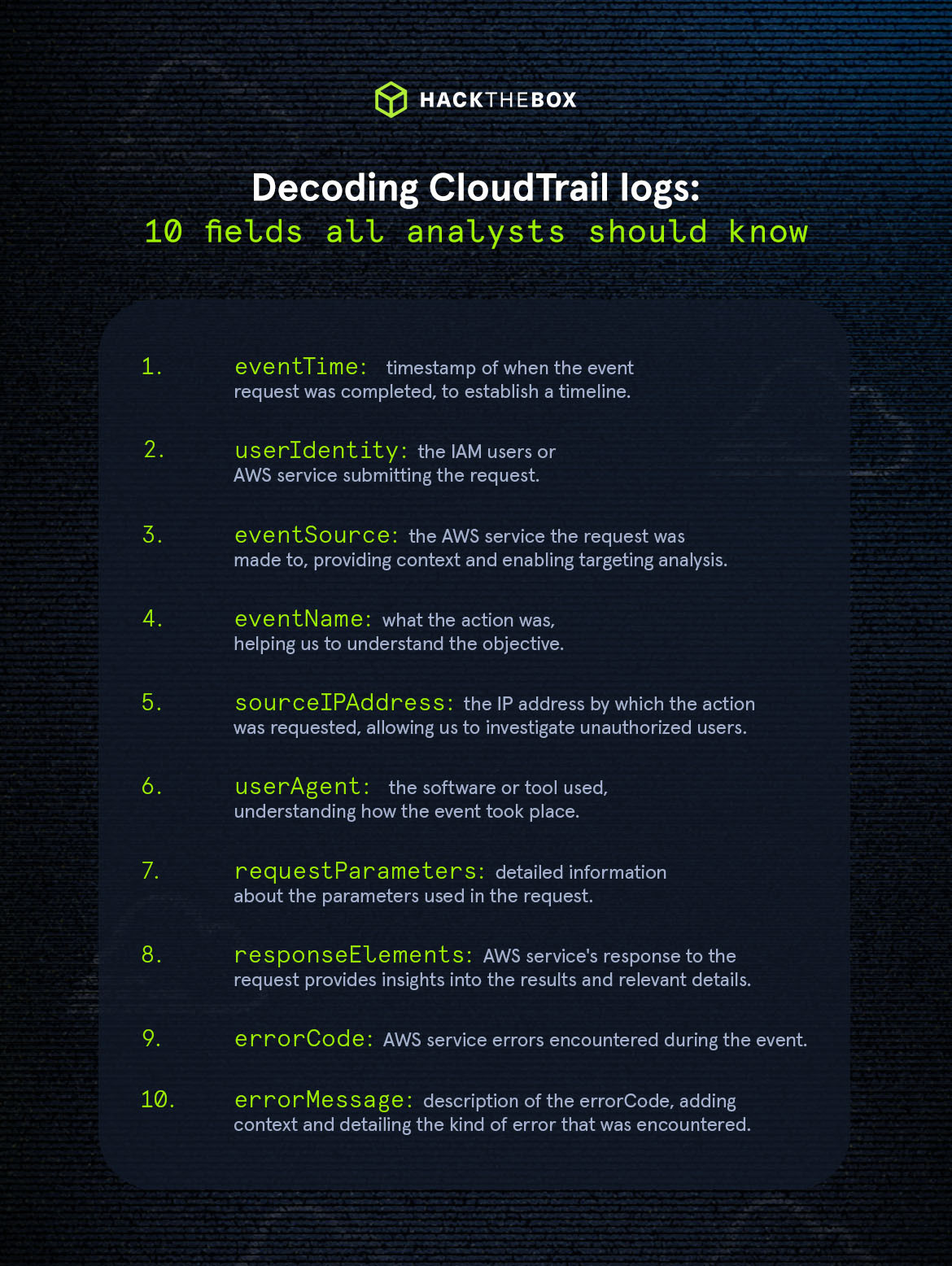

Field	Description	Importance
eventTime	Timestamp of the event when the request was completed, formatted in UTC.	For establishing a timeline of events.
userIdentity	The IAM user, role, or AWS service who is submitting the request.	Information about the IAM user or AWS entity issuing the request is vital for accountability and to determine proper authorization.
eventSource	The AWS service that the request was made to.	Identifying the specific AWS service involved gives context and enables targeted analysis and comprehension of the operation's nature.
eventName	The API call or action that was requested.	The exact action that is being requested can give a clue about the kind of operation being performed, which can help to better understand the objective of the action.
sourceIPAddress	Indicates the IP address from which the API call originated.	The IP address of the requester is critical for tracking the source of the request, and identifying potential unauthorized access.
userAgent	The initiating software or tool for the request, which could be an AWS Service, AWS Management Console, AWS SDK, or AWS CLI.	The user agent information shows the software or tool used, contributing to the understanding of how communication with AWS services occurred.
requestParameters	This field contains detailed information about the parameters used in the request.	This allows responders to examine the specific parameters associated with the API call, enabling the identification of values or resources involved.
responseElements	The AWS service's response to the request provides insights into the results and relevant details.	Captures the output of the request when the operation is successful; otherwise, it will return an errorCode in case of an issue.
errorCode	Specific AWS service errors encountered during the event.	It highlights the issues encountered and provides us with a quick idea of what the issue is about.
errorMessage	Description of the errorCode, adding context and detailing the kind of error that was encountered.	Complements the errorCode by giving deeper information about the issue, helping administrators or responders to conduct a more effective investigation.

Understanding the log structure is crucial for effective analysis and interpretation of CloudTrail data during forensic investigations. Let’s take a look at our example below:

{ "eventVersion": "1.08", "userIdentity": { "type": "IAMUser", "principalId": "AIDA52GPOBQCAXKB4JMJ7", "arn": "arn:aws:iam::012345678910:user/charlie.brown", "accountId": "012345678910", "userName": "charlie.brown" }, "eventTime": "2023-04-11T02:57:19Z", "eventSource": "signin.amazonaws.com", "eventName": "ConsoleLogin", "awsRegion": "ap-southeast-2", "sourceIPAddress": "11.22.33.44", "userAgent": "Mozilla/5.0 (Windows NT 10.0; Win64; x64) AppleWebKit/537.36 (KHTML, like Gecko) Chrome/119.0.0.0 Safari/537.36 Edg/119.0.0.0", "requestParameters": null, "responseElements": { "ConsoleLogin": "Success" }, "additionalEventData": { "LoginTo": "https://console.aws.amazon.com/console/home?hashArgs=%23&isauthcode=true&state=hashArgsFromTB_ap-southeast-2_c02abb26e8a93195", "MobileVersion": "No", "MFAUsed": "No" }, "eventID": "a2d8a421-7035-4ab2-81be-36db912717be", "readOnly": false, "eventType": "AwsConsoleSignIn", "managementEvent": true, "recipientAccountId": "012345678910", "eventCategory": "Management", "tlsDetails": { "tlsVersion": "TLSv1.3", "cipherSuite": "TLS_AES_128_GCM_SHA256", "clientProvidedHostHeader": "ap-southeast-2.signin.aws.amazon.com" } }

Based on the log above, we can determine that the user with the account “charlie.brown” successfully logged in on April 11th, 2023, at approximately 02:57:19 UTC. The login occurred using the AWS Management Console using a web browser, with the IP address 11.22.33.44.

The example illustrates the practical value of familiarizing ourselves with CloudTrail events, as it allows us to efficiently detect and respond to any unusual activities and manage potential security incidents.

How to keep events beyond 90 days?

Creating an AWS Trail is our solution for retaining or having a copy of logs that are past the default 90-day retention period, as it will send the events to an S3 bucket. Trails play an important role in extending your log retention strategy, facilitating troubleshooting, and enabling you to maintain a record of occurrences for compliance, audit, and historical analysis.

To create a Trail, follow these steps:

1. Select "Trails" in the left pane and click the "Create Trail" button.

2. Give your Trail a name and either create a new S3 bucket or select an existing one. It's recommended to encrypt your logs using a Key Management Service (KMS) since the data being transferred is sensitive. Additionally, you can configure CloudWatch logs to monitor your Trail and notify you in case of specified activities.

3. Select the event types you want to log—whether it's management, data, or insights. You can refer back to the table above to review the differences between the three.

For more details on setting up a Trail, you can find comprehensive information on AWS' official page.

CloudTrail log analysis examples

Now, let's jump in and have some fun digging into these sample logs!

1. Unapproved EC2 instance deployment

Scenario:

An organization utilizing Amazon Web Services (AWS) experienced an unexpected and unauthorized EC2 instance launch outside of normal business hours. The CloudTrail logs revealed this security incident, prompting an immediate investigation.

{ "eventVersion": "1.08", "userIdentity": { "type": "IAMUser", "principalId": "AIDABC123ABC123ABC123", "arn": "arn:aws:iam::012345678910:user/testaccount", "accountId": "012345678910", "accessKeyId": "AKIABC123ABC123ABC123", "userName": "testaccount", "sessionContext": { "sessionIssuer": {}, "webIdFederationData": {}, "attributes": { "creationDate": "2023-05-24T18:49:01Z", "mfaAuthenticated": "false" } } }, "eventTime": "2023-05-24T18:51:25Z", "eventSource": "ec2.amazonaws.com", "eventName": "RunInstances", "awsRegion": "eu-north-1", "sourceIPAddress": "98.76.54.32", "userAgent": "AWS Internal", "requestParameters": { "instancesSet": { "items": [ { "imageId": "ami-0fc5d935ebf8bc3bc", "minCount": 1, "maxCount": 1, "keyName": "keyPair1" } ] }, "instanceType": "c7a.48xlarge", "blockDeviceMapping": { "items": [ { "deviceName": "/dev/sda1", "ebs": { "snapshotId": "snap-0fe62e94bc2ecc9d5", "volumeSize": 8192, "deleteOnTermination": true, "volumeType": "gp3", "iops": 3000, "encrypted": false, "throughput": 125 } } ] }, "monitoring": { "enabled": false }, "disableApiTermination": false, "disableApiStop": false, "clientToken": "5aeb67db-63c0-4768-a109-7e61b3b05966", "networkInterfaceSet": { "items": [ { "deviceIndex": 0, "subnetId": "subnet-06b4b5bc0a0ecca33", "associatePublicIpAddress": true, "groupSet": { "items": [ { "groupId": "sg-082eb78cec3a15c91" } ] } } ] }, "ebsOptimized": true, "tagSpecificationSet": { "items": [ { "resourceType": "instance", "tags": [ { "key": "Name", "value": "prod-server" } ] } ] }, "metadataOptions": { "httpTokens": "required", "httpPutResponseHopLimit": 2, "httpEndpoint": "enabled" }, "privateDnsNameOptions": { "hostnameType": "ip-name", "enableResourceNameDnsARecord": false, "enableResourceNameDnsAAAARecord": false } }, "responseElements": { "requestId": "2d42f697-341f-4741-8a51-e528e4a1aef9", "reservationId": "r-079e466e68869914a", "ownerId": "012345678910", "groupSet": {}, "instancesSet": { "items": [ { "instanceId": "i-0705171eb7239568e", "imageId": "ami-0fc5d935ebf8bc3bc", "currentInstanceBootMode": "legacy-bios", "instanceState": { "code": 0, "name": "pending" }, "privateDnsName": "ip-192-168-0-9.ec2.internal", "keyName": "keyPair1", "amiLaunchIndex": 0, "productCodes": {}, "instanceType": "c7a.48xlarge", "launchTime": 1701240684000, "placement": { "availabilityZone": "eu-north-1a", "tenancy": "default" }, "monitoring": { "state": "disabled" }, "subnetId": "subnet-06b4b5bc0a0ecca33", "vpcId": "vpc-0f97b19654604cc18", "privateIpAddress": "192.168.0.9", "stateReason": { "code": "pending", "message": "pending" }, "architecture": "x86_64", "rootDeviceType": "ebs", "rootDeviceName": "/dev/sda1", "blockDeviceMapping": {}, "virtualizationType": "hvm", "hypervisor": "xen", "tagSet": { "items": [ { "key": "Name", "value": "prod-server" } ] }, "clientToken": "5aeb67db-63c0-4768-a109-7e61b3b05966", "groupSet": { "items": [ { "groupId": "sg-082eb78cec3a15c91", "groupName": "default" } ] }, "sourceDestCheck": true, "networkInterfaceSet": { "items": [ { "networkInterfaceId": "eni-083413ea4cfd59843", "subnetId": "subnet-06b4b5bc0a0ecca33", "vpcId": "vpc-0f97b19654604cc18", "ownerId": "012345678910", "status": "in-use", "macAddress": "0e:d8:ce:d9:3b:25", "privateIpAddress": "192.168.0.9", "privateDnsName": "ip-192-168-0-9.ec2.internal", "sourceDestCheck": true, "interfaceType": "interface", "groupSet": { "items": [ { "groupId": "sg-082eb78cec3a15c91", "groupName": "default" } ] }, "attachment": { "attachmentId": "eni-attach-099a4e91bc22870db", "deviceIndex": 0, "networkCardIndex": 0, "status": "attaching", "attachTime": 1684911084000, "deleteOnTermination": true }, "privateIpAddressesSet": { "item": [ { "privateIpAddress": "192.168.0.9", "privateDnsName": "ip-192-168-0-9.ec2.internal", "primary": true } ] }, "ipv6AddressesSet": {}, "tagSet": {} } ] }, "ebsOptimized": true, "enaSupport": true, "cpuOptions": { "coreCount": 1, "threadsPerCore": 2 }, "capacityReservationSpecification": { "capacityReservationPreference": "open" }, "enclaveOptions": { "enabled": false }, "metadataOptions": { "state": "pending", "httpTokens": "required", "httpPutResponseHopLimit": 2, "httpEndpoint": "enabled", "httpProtocolIpv4": "enabled", "httpProtocolIpv6": "disabled", "instanceMetadataTags": "disabled" }, "maintenanceOptions": { "autoRecovery": "default" }, "privateDnsNameOptions": { "hostnameType": "ip-name", "enableResourceNameDnsARecord": false, "enableResourceNameDnsAAAARecord": false } } ] } }, "requestID": "2d42f697-341f-4741-8a51-e528e4a1aef9", "eventID": "5a4fa254-3644-4407-a0d4-060a60a7422d", "readOnly": false, "eventType": "AwsApiCall", "managementEvent": true, "recipientAccountId": "012345678910", "eventCategory": "Management", "sessionCredentialFromConsole": "true" }

Questions:

1. Which security group was associated with the newly launched EC2 instance?

2. What kind of server was created?

Analysis:

To find out which security group is linked to the recently launched EC2 instance, we should check the "responseElements" section. This part contains details about the created instance, including the group's ID and Name. By examining these details, you can pinpoint the specific security group associated with the instance.

For the second question regarding the type of server created, inspect the "requestParameters" field in the CloudTrail log, which contains details about the requested resources. Let’s then pay attention to the "instanceType" value, indicating the type of EC2 instance launched. You can also check the "imageId" field to identify the Amazon Machine Image (AMI) used for creating the instance.

Answers:

1. default

2. c7a.48xlarge

2. Unauthorized bucket configuration changes

Scenario:

An AWS account owner notices unexpected alterations to the configurations of an S3 bucket. The bucket, initially set to private access, has been modified to allow public access. This unauthorized change raises concerns about data security and compliance.

{ "eventVersion": "1.09", "userIdentity": { "type": "IAMUser", "principalId": "AIDABC123ABC123ABC123", "arn": "arn:aws:iam::012345678910:user/I4mUser", "accountId": "012345678910", "accessKeyId": "AKIABC123ABC123ABC123", "userName": "I4mUser", "sessionContext": { "attributes": { "creationDate": "2023-01-02T06:49:01Z", "mfaAuthenticated": "false" } } }, "eventTime": "2023-01-02T07:26:47Z", "eventSource": "s3.amazonaws.com", "eventName": "PutBucketPolicy", "awsRegion": "us-west-2", "sourceIPAddress": "34.12.56.78", "userAgent": "[S3Console/0.4, aws-internal/3 aws-sdk-java/1.12.488 Linux/5.10.198-165.748.amzn2int.x86_64 OpenJDK_64-Bit_Server_VM/25.372-b08 java/1.8.0_372 vendor/Oracle_Corporation cfg/retry-mode/standard]", "requestParameters": { "bucketPolicy": { "Version": "2012-10-17", "Statement": [ { "Sid": "PublicReadGetObject", "Effect": "Allow", "Principal": "*", "Action": [ "s3:GetObject" ], "Resource": [ "arn:aws:s3:::secret-bucket/*" ] } ] }, "bucketName": "secret-bucket", "Host": "s3.amazonaws.com", "policy": "" }, "responseElements": null, "additionalEventData": { "SignatureVersion": "SigV4", "CipherSuite": "ECDHE-RSA-AES128-GCM-SHA256", "bytesTransferredIn": 349, "AuthenticationMethod": "AuthHeader", "x-amz-id-2": "LosKyYHy7c23S31ShGCVVyUA2MUeaENMAHoRmv6IITHCSxG6gKnEQZO7mhKQKOqd8mfGCSiO0E0=", "bytesTransferredOut": 0 }, "requestID": "E53WA2ETV5MG3CV7", "eventID": "5b256c0b-cfb7-4a98-bfe9-c99acd84a5ad", "readOnly": false, "resources": [ { "accountId": "012345678910", "type": "AWS::S3::Bucket", "ARN": "arn:aws:s3:::secret-bucket" } ], "eventType": "AwsApiCall", "managementEvent": true, "recipientAccountId": "012345678910", "vpcEndpointId": "vpce-f40dc59d", "eventCategory": "Management", "tlsDetails": { "tlsVersion": "TLSv1.2", "cipherSuite": "ECDHE-RSA-AES128-GCM-SHA256", "clientProvidedHostHeader": "s3.amazonaws.com" } }

Questions:

1. Identify the user account responsible for modifying the S3 bucket.

2. Which S3 bucket was affected?

Analysis:

To discover who made the changes to the S3 bucket, examine the "userIdentity" section and focus on the "userName" field. This field contains the IAM account linked to the modification, which can help you pinpoint the individual or entity responsible for the changes made to the bucket.

Following that, to determine the bucket impacted by the unauthorized modifications, we can take a look at the "resources" section in the CloudTrail log or the "requestParameters" section. There, we'll find the “bucketName” that has been singled out for alteration.

Answers:

1. I4mUser

2. secret-bucket

3. Unusual S3 object activity

A cybersecurity incident unfolded within a corporate AWS environment involving an unusual S3 object download. The incident raised concerns about potential data exfiltration and prompted a swift response from the security team.

An AWS CloudTrail log captured an unexpected S3 “GetObject” event within the corporate AWS environment. The incident, initiated by an IAM user, involved the retrieval of a specific S3 object from a designated bucket. While the event itself appeared legitimate, certain characteristics raised concerns, prompting a thorough investigation.

{ "eventVersion": "1.09", "userIdentity": { "type": "IAMUser", "principalId": "AIDABC123ABC123ABC123", "arn": "arn:aws:iam::012345678910:user/hr-isabella.davis", "accountId": "012345678910", "accessKeyId": "AKIABC123ABC123ABC123", "userName": "hr-isabella.davis" }, "eventTime": "2023-08-10T15:25:39Z", "eventSource": "s3.amazonaws.com", "eventName": "GetObject", "awsRegion": "us-east-1", "sourceIPAddress": "12.34.56.78", "userAgent": "[aws-cli/2.12.0 Python/3.11.4 Linux/5.11.0-27-generic source/x86_64.ubuntu.20.04 prompt/off command/s3.cp]" "requestParameters": { "bucketName": "private-data", "Host": "private-data.s3.us-east-1.amazonaws.com", "key": "documents/orgReport.pdf" }, "responseElements": null, "additionalEventData": { "SignatureVersion": "SigV4", "CipherSuite": "ECDHE-RSA-AES128-GCM-SHA256", "bytesTransferredIn": 0, "AuthenticationMethod": "AuthHeader", "x-amz-id-2": "J7vZCNYUnuRNNIPDJLShdXiXIADgqE10y88gIChEkjekGK7ZogFgxM46H91GqGzuOWSWe/ivhzQ=", "bytesTransferredOut": 1500000 }, "requestID": "PMAW548SHGSN4MNV", "eventID": "77eaea22-8bb7-4aa2-bc92-82df8fd73873", "readOnly": true, "resources": [ { "type": "AWS::S3::Object", "ARN": "arn:aws:s3:::private-data/documents/orgReport.pdf" }, { "accountId": "012345678910", "type": "AWS::S3::Bucket", "ARN": "arn:aws:s3:::private-data" } ], "eventType": "AwsApiCall", "managementEvent": false, "recipientAccountId": "012345678910", "eventCategory": "Data", "tlsDetails": { "tlsVersion": "TLSv1.2", "cipherSuite": "ECDHE-RSA-AES128-GCM-SHA256", "clientProvidedHostHeader": "private-data.s3.us-east-1.amazonaws.com" } }

Questions:

1. What tool facilitated the file download?

2. What is the volume of data transferred out of the S3 bucket?

Analysis:

The key to figuring out which tool was used for the download lies in the "userAgent" field. This field provides important information about the client or application that initiated the file retrieval.

Turning to the second question about the data transfer, our focus should be on the "additionalEventData" section. This section contains significant details like the amount of data transferred in and out.

Answers:

1. AWS CLI

2. 1500000

Proficiency unlocked: Navigating AWS CloudTrail logs

Congratulations! You’ve successfully gained new skills in administering, comprehending, and analyzing AWS CloudTrail logs–a valuable skill set that's pivotal for ensuring the security of your cloud infrastructure.

As we've explored the complexities of log structures through our sample cases, you're now equipped to reconstruct events, identify irregularities, and promptly address potential security threats.

Your commitment to enhancing your knowledge for a more secure cloud infrastructure is truly admirable and aligns perfectly with the essential skill set required for positions such as SOC and cybersecurity analysts.
